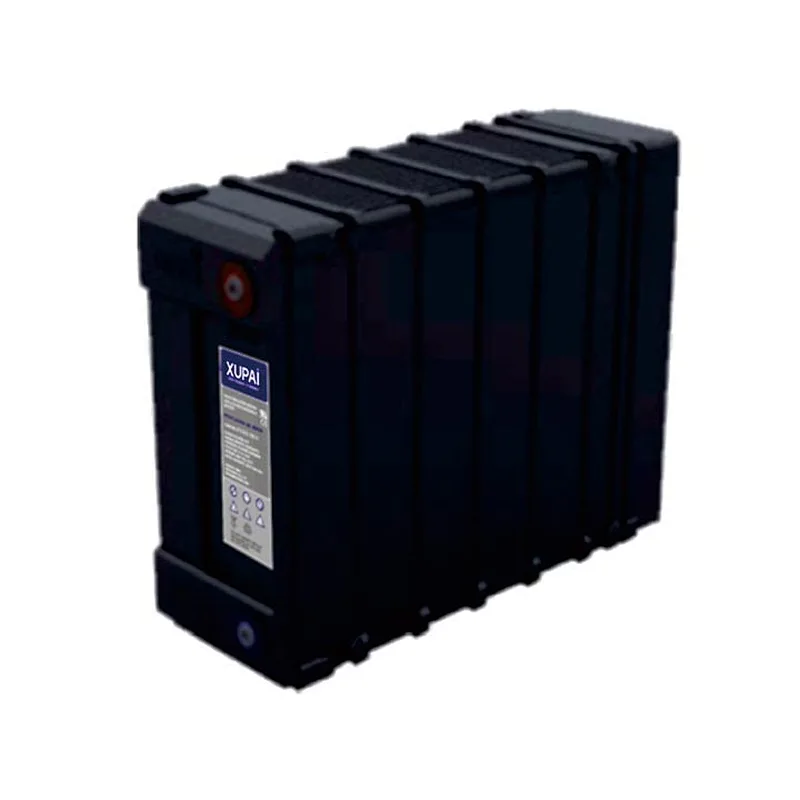

Durable Monitoring center sealed type ups battery sofar solar

FEATURES AND BENEFITS

1. 12 years design life in floating condition

2. Wide operating temperature range from -15°C to 55°C

3. Advanced paste formula with increased recharge efficiency

4. Front access terminal with standard width for 19'' and 23'' ETSI racks

5. 30% decreased float current lead to excellent high temperature resistance

6. Thick flat plate with high Tin low Calcium alloy

7. Low self-discharge rate

8. Excellent deep discharge recovery capability

CONSTRUCTION

1. Positive plate : Thick high Sn low Ca grid minimize corrosion and prolong life

2. Negative plate : Balanced Pb-Ca grid for improved recombination efficiency

3. Separator : Advanced AGM separator for ultra low float current

4. Electrolyte : Dilute high purity sulphuric acid

5. Battery container and cover : ABS

6. Pillar seal : 100% factory tested, proven two layers epoxy resin seal

7. Relief valve : Complete with integrated flame arrestor

CHARGING VOLTAGE AND SETTINGS

1. Constant voltage charging is recommended

2. Recommended float charge voltage: 2.25Vpc @ 20~25°C

3. Float voltage temperature compensation: -3mV/°C/cell

4. Float voltage range: 2.25 to 2.29 Vpc @ 20~25°C

5. Cyclic application charge voltage : 2.35 to 2.40Vpc @ 20~25°C

6. Max. charge current allowable : 0.25C10A

Complied Standards

1. IEC 60896-21/22

2. Eurobat guide, long life

3. BS6290 part 4

4. JISC 8704

5. YD/T 799

6. UL1989

7. IATA and IMDG
