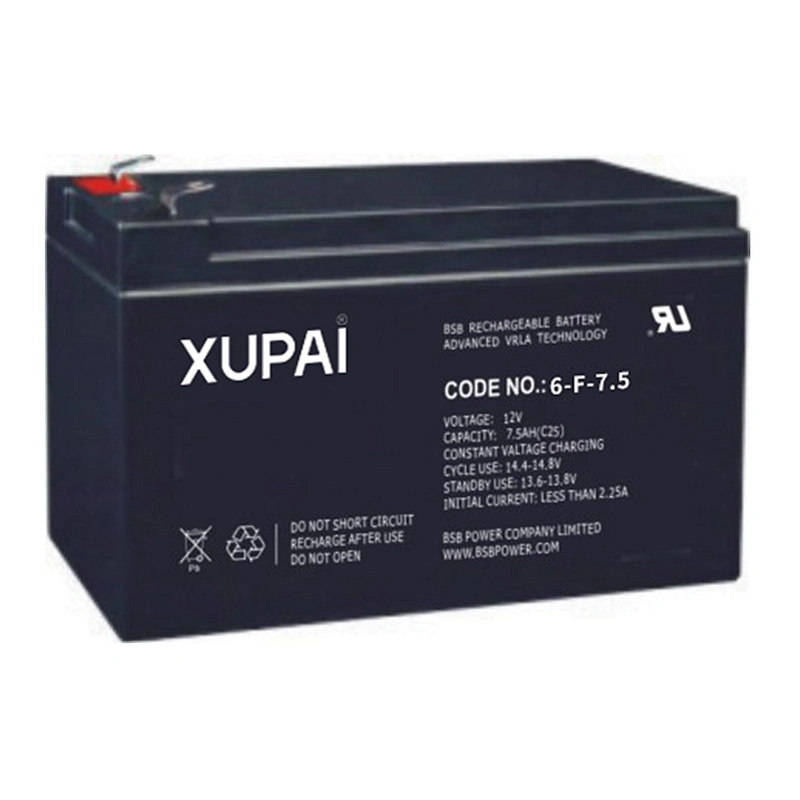

12 Volt 6-F-7.5 portable backup terminal for ups battery pack

FEATURES AND BENEFITS

1. 5 years design life in floating condition

2. Wide operating temperature range from -15°C to 50°C

3. Can be used in vertical or horizontal position

4. Balanced design for both floating and cyclic operation

5. Low self-discharge rate and long shelf life

CONSTRUCTION

1. Positive plate : Standard Pb-Ca-Sn alloy

2. Negative plate : Balanced Pb-Ca grid for improved recombination efficiency

3. Separator : AGM separator

4. Electrolyte : Dilute high purity sulphuric acid

5. Battery container and cover : ABS

6. Pillar seal : Double layers epoxy resin seal

7. Relief valve : Self sealing rubber cap valve with proven reliability

CHARGING VOLTAGE AND SETTINGS

1. Constant voltage charging is recommended

2. Recommended float charge voltage: 2.27Vpc @ 20~25°C

3. Float voltage temperature compensation: -3mV/°C/cell

4. Float voltage range: 2.27 to 2.30 Vpc @ 20~25°C

5. Cyclic application charge voltage : 2.40 to 2.50 Vpc @ 20~25°C

6. Max. charge current allowable : 0.3C20A

Applications

1. Security and alarm systems

2. Small size UPS

3. Emergency light systems

4. Toys

5. Others
